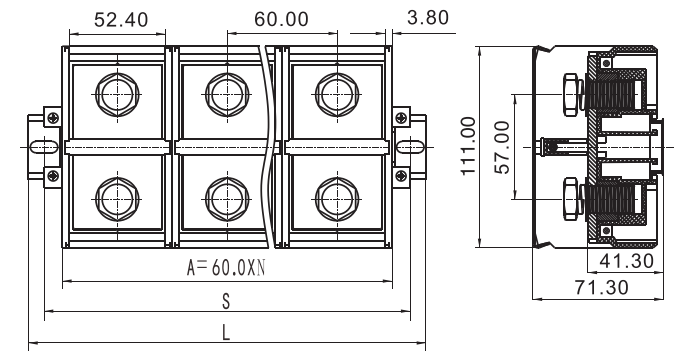

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長 L |
157 |
217 |
277 |
337 |
397 |
457 |
517 |
577 |
637 |
697 |
757 |
817 |
877 |
937 |
997 |
|
|
固定孔距s |
140 |
200 |
260 |
320 |
380 |
440 |
500 |
560 |
620 |
680 |
740 |
800 |
860 |
920 |
980 |
TECHNICAL DATA
|
端子間距(Center Spase) |
60. 0mm |
|
壓線範圍(Wire Range) |
325mm2(Max) |
|
螺釘扭距(Screw Torque) |
213 Ibf. in |
|
額定電流(Rated Current) |
600V,500A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M16,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
